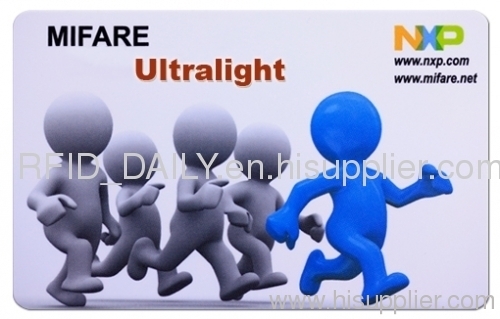

RFID NFC card tags forcontactless solutions

This RFID NFC card-02 isbased on NXP MF0 IC U1, which is connected to a coil with a few turns and thenembedded into plastic. The communication layer (Mifare RF Interface) complieswith part 2 and 3 of the ISO/IEC14443A standard. The MF0 IC U1 is primarilydesigned for contactless single trip solutions in transport applications. It iscontactless transmission of data and supply energy and no battery isneeded.

This NFC RFID card is theperfect solution for system operators who will implement completely contactlessautomatic fare collection programs. With its wider application, traditional lowcost ticketing media will be gradually replaced by disposable, non-reloadablecontactless cards or tickets.

Applications:

Access control, PeopleIdentification, Payment System, secure applications, such as transportticketing, time attendance solutions, car parking, road tolling, time attendancesolutions, car parking, road tolling

Specifications:

1.      Type: ContactlessR/W

2.     Operating Frequency: HF (13.56MHz)

3.      Protocol: ISO14443Type A

4.     Size: 85.6×54×0.86mm

5.      Reading Distance:6~10cm

6.      Material:PVC

7.      OperatingTemperature: -25º C to +50º C

8.      StorageTemperature: -40º C to +60º C

Printing:

lOffsetPrinting

lSilk ScreenPrinting

lSingle Card Printing(M.C.O.P)

lThermalPrinting

Option:

CompetitiveAdvantage:

1.      WaterproofIP 68

2.      100,000 times reading & writing

3.      AlsoAvailable: Custom colors, OEM logo printing, ID numbering, magnetic stripe,signature stripe, slot punch mark

4.      Durable& cost effective
